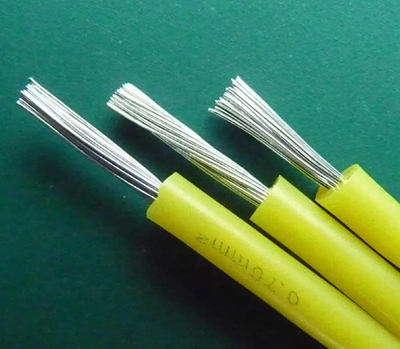

用途:F、H级绝缘电机和电器
技术参数:
•导体材料:镀锡铜丝
•绝缘材料:硅橡胶
•护套颜色:红、黄、兰、白、黑、绿、棕、橙、灰等
•额定温度:-60℃∽+200℃
•额定电压:1KVAC、3KVAC、6KVAC、10KVAC、35KVAC、50KVAC、80KVAC、100KVAC
导体截面积(mm2) | 导体结构根/(mm) | 标称外径(mm) | 20℃导体电阻≤Ω/km | |||
JG 1KVAC | JGG 3KVAC | JGG 6KVAC | JGG 10KVAC | |||
0.5 | 16/0.20 | 3.3 | 4.85 | 5.85 | 8.8 | 40.1 |
0.75 | 24/0.20 | 4 | 5.15 | 6.1 | 8.9 | 26.7 |
1 | 32/0.20 | 4.25 | 5.35 | 6.2 | 9 | 20 |
1.5 | 48/0.20 | 4.5 | 6 | 6.8 | 9.1 | 13.7 |
2 | 40/0.25 | 4.8 | 6.3 | 7.2 | 9.2 | 10 |
2.5 | 49/0.25 | 5.2 | 6.8 | 7.8 | 9.3 | 8.21 |
4 | 56/0.30 | 6 | 7.6 | 8.5 | 10 | 5.09 |
6 | 84/0.30 | 7 | 8.7 | 9.8 | 11.5 | 3.39 |
10 | 84/0.40 | 8.2 | 9.8 | 10.9 | 12 | 1.95 |
16 | 126/0.40 | 9.6 | 11.4 | 12.8 | 13.6 | 1.24 |
25 | 196/0.40 | 11.5 | 13.1 | 14.5 | 15 | 0.8 |
35 | 276/0.40 | 13.2 | 14.4 | 16 | 16.8 | 0.57 |
50 | 396/0.40 | 15.8 | 16.9 | 18.1 | 18.8 | 0.4 |
70 | 360/0.50 | 17.2 | 18.8 | 20.5 | 21 | 0.28 |
JGG 35KVAC | JGG 50KVAC | JGG 80KVAC | JGG 100KVAC | |||
4 | 56/0.30 | 18 | 21.5 | 24.5 | 27 | 5.09 |
6 | 84/0.30 | 18.5 | 22.20 | 25.00 | 27.5 | 3.39 |
10 | 84/0.40 | 19.8 | 23.80 | 25.80 | 28 | 1.95 |
16 | 126/0.40 | 20.5 | 24.50 | 26.80 | 29 | 1.24 |
