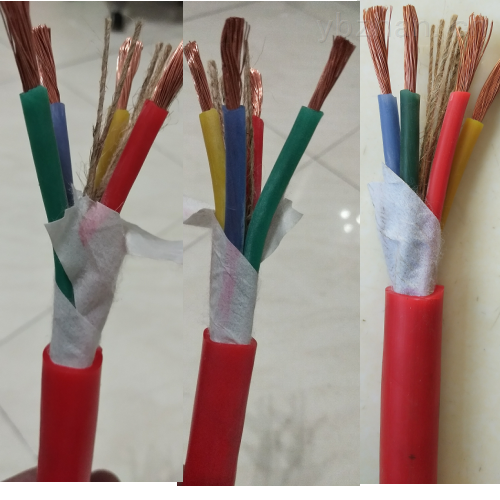

YGCP3*16+1*10硅橡胶电缆

2023-11-24 15:44 已有人浏览 安徽佰能电气有限公司
TAG标签：硅橡胶电缆 耐高温电缆 红色电缆
YGCP3*16+1*10硅橡胶电缆技术参数一.产品特性：1、额定电压：450/750V2、工作温度：-60～+200℃3、导体：绞合镀锡铜线4、绝缘：硅橡胶5...

产品分类硅橡胶电缆

产品型号耐热硅橡胶电缆，硅胶电缆

产品电压-

包装类型软包货盘装

护套材质更具具体型号

报价电话 18098308844

详情介绍

YGCP3*16+1*10硅橡胶电缆技术参数

一.产品特性：
1、额定电压：450/750V
2、工作温度：-60～+200℃
3、导 体：绞合镀锡铜线
4、绝 缘：硅橡胶
5、护 套：硅橡胶
6、颜 色：红/黄/兰/白/黑/黄绿/棕/绿等

YGCP3*16+1*10硅橡胶电缆应用领域：

可在长期潮湿环境中使用，电性能及防水、防霉性能优越。 弯曲性能优良，Z小弯曲半径为电缆外径16倍，可移动使用。使用于交流额定电压450/750V及以下各种移动式电机、钢铁、航空、电厂、石化等高温环境中使用。交货要求：按双方合同协议商定，允许不小于10米的短段交货。其数量应不超过交货总长度的10%。

型号说明：

导体材料：多股铜导体

绝缘材料：硅橡胶绝缘

绝缘颜色：红、黄、绿、蓝。

护套材料：硅橡胶护套

护套颜色： 红色护套

护套印字要求：厂名、规格、型号、电压等级、执行标准。生产日期

规格说明：

导体结构：126/0.40+84/0.40

主线芯外径：8.4

地线芯外径：6.6

护套厚度：2.6

护套外径 ： 24.6

规格选型：

YGCP-0.6/1KV-1*1.5

ZR-YGCP-0.6/1KV-1*1.5

ZRN-YGCP-0.6/1KV-1*1.5

YGCP-0.6/1KV-1*2.5

ZR-YGCP-0.6/1KV-1*2.5

ZRN-YGCP-0.6/1KV-1*2.5

YGCP-0.6/1KV-1*4

ZR-YGCP-0.6/1KV-1*4

ZRN-YGCP-0.6/1KV-1*4

YGCP-0.6/1KV-1*6

ZR-YGCP-0.6/1KV-1*6

ZRN-YGCP-0.6/1KV-1*6

YGCP-0.6/1KV-1*10

ZR-YGCP-0.6/1KV-1*10

ZRN-YGCP-0.6/1KV-1*10

YGCP-0.6/1KV-1*16

ZR-YGCP-0.6/1KV-1*16

ZRN-YGCP-0.6/1KV-1*16

YGCP-0.6/1KV-1*25

ZR-YGCP-0.6/1KV-1*25

ZRN-YGCP-0.6/1KV-1*25

YGCP-0.6/1KV-1*35

ZR-YGCP-0.6/1KV-1*35

ZRN-YGCP-0.6/1KV-1*35

YGCP-0.6/1KV-1*50

ZR-YGCP-0.6/1KV-1*50

ZRN-YGCP-0.6/1KV-1*50

YGCP-0.6/1KV-1*70

ZR-YGCP-0.6/1KV-1*70

ZRN-YGCP-0.6/1KV-1*70

YGCP-0.6/1KV-1*95

ZR-YGCP-0.6/1KV-1*95

ZRN-YGCP-0.6/1KV-1*95

YGCP-0.6/1KV-1*120

ZR-YGCP-0.6/1KV-1*120

ZRN-YGCP-0.6/1KV-1*120

YGCP-0.6/1KV-1*150

ZR-YGCP-0.6/1KV-1*150

ZRN-YGCP-0.6/1KV-1*150

YGCP-0.6/1KV-1*185

ZR-YGCP-0.6/1KV-1*185

ZRN-YGCP-0.6/1KV-1*185

YGCP-0.6/1KV-1*240

ZR-YGCP-0.6/1KV-1*240

ZRN-YGCP-0.6/1KV-1*240

YGCP-0.6/1KV-1*300

ZR-YGCP-0.6/1KV-1*300

ZRN-YGCP-0.6/1KV-1*300

YGCP-0.6/1KV-1*400

ZR-YGCP-0.6/1KV-1*400

ZRN-YGCP-0.6/1KV-1*400

YGCP-0.6/1KV-1*500

ZR-YGCP-0.6/1KV-1*500

ZRN-YGCP-0.6/1KV-1*500

YGCP-0.6/1KV-2*1.5

ZR-YGCP-0.6/1KV-2*1.5

ZRN-YGCP-0.6/1KV-2*1.5

YGCP-0.6/1KV-2*2.5

ZR-YGCP-0.6/1KV-2*2.5

ZRN-YGCP-0.6/1KV-2*2.5

YGCP-0.6/1KV-2*4

ZR-YGCP-0.6/1KV-2*4

ZRN-YGCP-0.6/1KV-2*4

YGCP-0.6/1KV-2*6

ZR-YGCP-0.6/1KV-2*6

ZRN-YGCP-0.6/1KV-2*6

YGCP-0.6/1KV-2*10

ZR-YGCP-0.6/1KV-2*10

ZRN-YGCP-0.6/1KV-2*10

YGCP-0.6/1KV-2*16

ZR-YGCP-0.6/1KV-2*16

ZRN-YGCP-0.6/1KV-2*16

YGCP-0.6/1KV-2*25

ZR-YGCP-0.6/1KV-2*25

ZRN-YGCP-0.6/1KV-2*25

YGCP-0.6/1KV-2*35

ZR-YGCP-0.6/1KV-2*35

ZRN-YGCP-0.6/1KV-2*35

YGCP-0.6/1KV-2*50

ZR-YGCP-0.6/1KV-2*50

ZRN-YGCP-0.6/1KV-2*50

YGCP-0.6/1KV-2*70

ZR-YGCP-0.6/1KV-2*70

ZRN-YGCP-0.6/1KV-2*70

YGCP-0.6/1KV-2*95

ZR-YGCP-0.6/1KV-2*95

ZRN-YGCP-0.6/1KV-2*95

YGCP-0.6/1KV-2*120

ZR-YGCP-0.6/1KV-2*120

ZRN-YGCP-0.6/1KV-2*120

YGCP-0.6/1KV-2*150

ZR-YGCP-0.6/1KV-2*150

ZRN-YGCP-0.6/1KV-2*150

YGCP-0.6/1KV-2*185

ZR-YGCP-0.6/1KV-2*185

ZRN-YGCP-0.6/1KV-2*185

YGCP-0.6/1KV-2*240

ZR-YGCP-0.6/1KV-2*240

ZRN-YGCP-0.6/1KV-2*240

YGCP-0.6/1KV-3*1.5

ZR-YGCP-0.6/1KV-3*1.5

ZRN-YGCP-0.6/1KV-3*1.5

YGCP-0.6/1KV-3*2.5

ZR-YGCP-0.6/1KV-3*2.5

ZRN-YGCP-0.6/1KV-3*2.5

YGCP-0.6/1KV-3*4

ZR-YGCP-0.6/1KV-3*4

ZRN-YGCP-0.6/1KV-3*4

YGCP-0.6/1KV-3*6

ZR-YGCP-0.6/1KV-3*6

ZRN-YGCP-0.6/1KV-3*6

YGCP-0.6/1KV-3*10

ZR-YGCP-0.6/1KV-3*10

ZRN-YGCP-0.6/1KV-3*10

YGCP-0.6/1KV-3*16

ZR-YGCP-0.6/1KV-3*16

ZRN-YGCP-0.6/1KV-3*16

YGCP-0.6/1KV-3*25

ZR-YGCP-0.6/1KV-3*25

ZRN-YGCP-0.6/1KV-3*25

YGCP-0.6/1KV-3*35

ZR-YGCP-0.6/1KV-3*35

ZRN-YGCP-0.6/1KV-3*35

YGCP-0.6/1KV-3*50

ZR-YGCP-0.6/1KV-3*50

ZRN-YGCP-0.6/1KV-3*50

YGCP-0.6/1KV-3*70

ZR-YGCP-0.6/1KV-3*70

ZRN-YGCP-0.6/1KV-3*70

YGCP-0.6/1KV-3*95

ZR-YGCP-0.6/1KV-3*95

ZRN-YGCP-0.6/1KV-3*95

YGCP-0.6/1KV-3*120

ZR-YGCP-0.6/1KV-3*120

ZRN-YGCP-0.6/1KV-3*120

YGCP-0.6/1KV-3*150

ZR-YGCP-0.6/1KV-3*150

ZRN-YGCP-0.6/1KV-3*150

YGCP-0.6/1KV-3*185

ZR-YGCP-0.6/1KV-3*185

ZRN-YGCP-0.6/1KV-3*185

YGCP-0.6/1KV-3*240

ZR-YGCP-0.6/1KV-3*240

ZRN-YGCP-0.6/1KV-3*240

YGCP-0.6/1KV-3*300

ZR-YGCP-0.6/1KV-3*300

ZRN-YGCP-0.6/1KV-3*300

YGCP-0.6/1KV-4*1.5

ZR-YGCP-0.6/1KV-4*1.5

ZRN-YGCP-0.6/1KV-4*1.5

YGCP-0.6/1KV-4*2.5

ZR-YGCP-0.6/1KV-4*2.5

ZRN-YGCP-0.6/1KV-4*2.5

YGCP-0.6/1KV-4*4

ZR-YGCP-0.6/1KV-4*4

ZRN-YGCP-0.6/1KV-4*4

YGCP-0.6/1KV-4*6

ZR-YGCP-0.6/1KV-4*6

ZRN-YGCP-0.6/1KV-4*6

YGCP-0.6/1KV-4*10

ZR-YGCP-0.6/1KV-4*10

ZRN-YGCP-0.6/1KV-4*10

YGCP-0.6/1KV-4*16

ZR-YGCP-0.6/1KV-4*16

ZRN-YGCP-0.6/1KV-4*16

YGCP-0.6/1KV-4*25

ZR-YGCP-0.6/1KV-4*25

ZRN-YGCP-0.6/1KV-4*25

YGCP-0.6/1KV-4*35

ZR-YGCP-0.6/1KV-4*35

ZRN-YGCP-0.6/1KV-4*35

YGCP-0.6/1KV-4*50

ZR-YGCP-0.6/1KV-4*50

ZRN-YGCP-0.6/1KV-4*50

YGCP-0.6/1KV-4*70

ZR-YGCP-0.6/1KV-4*70

ZRN-YGCP-0.6/1KV-4*70

YGCP-0.6/1KV-4*95

ZR-YGCP-0.6/1KV-4*95

ZRN-YGCP-0.6/1KV-4*95

YGCP-0.6/1KV-4*120

ZR-YGCP-0.6/1KV-4*120

ZRN-YGCP-0.6/1KV-4*120

YGCP-0.6/1KV-4*150

ZR-YGCP-0.6/1KV-4*150

ZRN-YGCP-0.6/1KV-4*150

YGCP-0.6/1KV-4*185

ZR-YGCP-0.6/1KV-4*185

ZRN-YGCP-0.6/1KV-4*185

YGCP-0.6/1KV-4*240

ZR-YGCP-0.6/1KV-4*240

ZRN-YGCP-0.6/1KV-4*240

YGCP-0.6/1KV-4*300

ZR-YGCP-0.6/1KV-4*300

ZRN-YGCP-0.6/1KV-4*300

YGCP-0.6/1KV-3*4+1*2.5

ZR-YGCP-0.6/1KV-3*4+1*2.5

ZRN-YGCP-0.6/1KV-3*4+1*2.5

YGCP-0.6/1KV-3*6+1*4

ZR-YGCP-0.6/1KV-3*6+1*4

ZRN-YGCP-0.6/1KV-3*6+1*4

YGCP-0.6/1KV-3*10+1*6

ZR-YGCP-0.6/1KV-3*10+1*6

ZRN-YGCP-0.6/1KV-3*10+1*6

YGCP-0.6/1KV-3*16+1*10

ZR-YGCP-0.6/1KV-3*16+1*10

ZRN-YGCP-0.6/1KV-3*16+1*10

YGCP-0.6/1KV-3*25+1*16

ZR-YGCP-0.6/1KV-3*25+1*16

ZRN-YGCP-0.6/1KV-3*25+1*16

YGCP-0.6/1KV-3*35+1*16

ZR-YGCP-0.6/1KV-3*35+1*16

ZRN-YGCP-0.6/1KV-3*35+1*16

YGCP-0.6/1KV-3*50+1*25

ZR-YGCP-0.6/1KV-3*50+1*25

ZRN-YGCP-0.6/1KV-3*50+1*25

YGCP-0.6/1KV-3*70+1*35

ZR-YGCP-0.6/1KV-3*70+1*35

ZRN-YGCP-0.6/1KV-3*70+1*35

YGCP-0.6/1KV-3*95+1*50

ZR-YGCP-0.6/1KV-3*95+1*50

ZRN-YGCP-0.6/1KV-3*95+1*50

YGCP-0.6/1KV-3*120+1*70

ZR-YGCP-0.6/1KV-3*120+1*70

ZRN-YGCP-0.6/1KV-3*120+1*70

YGCP-0.6/1KV-3*150+1*70

ZR-YGCP-0.6/1KV-3*150+1*70

ZRN-YGCP-0.6/1KV-3*150+1*70

YGCP-0.6/1KV-3*185+1*95

ZR-YGCP-0.6/1KV-3*185+1*95

ZRN-YGCP-0.6/1KV-3*185+1*95

YGCP-0.6/1KV-3*240+1*120

ZR-YGCP-0.6/1KV-3*240+1*120

ZRN-YGCP-0.6/1KV-3*240+1*120

YGCP-0.6/1KV-3*300+1*150

ZR-YGCP-0.6/1KV-3*300+1*150

ZRN-YGCP-0.6/1KV-3*300+1*150

YGCP-0.6/1KV-3*10+2*6

ZR-YGCP-0.6/1KV-3*10+2*6

ZRN-YGCP-0.6/1KV-3*10+2*6

YGCP-0.6/1KV-3*16+2*10

ZR-YGCP-0.6/1KV-3*16+2*10

ZRN-YGCP-0.6/1KV-3*16+2*10

YGCP-0.6/1KV-3*25+2*16

ZR-YGCP-0.6/1KV-3*25+2*16

ZRN-YGCP-0.6/1KV-3*25+2*16

YGCP-0.6/1KV-3*35+2*16

ZR-YGCP-0.6/1KV-3*35+2*16

ZRN-YGCP-0.6/1KV-3*35+2*16

YGCP-0.6/1KV-3*50+2*25

ZR-YGCP-0.6/1KV-3*50+2*25

ZRN-YGCP-0.6/1KV-3*50+2*25

YGCP-0.6/1KV-3*70+2*35

ZR-YGCP-0.6/1KV-3*70+2*35

ZRN-YGCP-0.6/1KV-3*70+2*35

YGCP-0.6/1KV-3*95+2*50

ZR-YGCP-0.6/1KV-3*95+2*50

ZRN-YGCP-0.6/1KV-3*95+2*50

YGCP-0.6/1KV-3*120+2*70

ZR-YGCP-0.6/1KV-3*120+2*70

ZRN-YGCP-0.6/1KV-3*120+2*70

YGCP-0.6/1KV-3*150+2*70

ZR-YGCP-0.6/1KV-3*150+2*70

ZRN-YGCP-0.6/1KV-3*150+2*70

YGCP-0.6/1KV-3*185+2*95

ZR-YGCP-0.6/1KV-3*185+2*95

ZRN-YGCP-0.6/1KV-3*185+2*95

YGCP-0.6/1KV-3*240+2*120

ZR-YGCP-0.6/1KV-3*240+2*120

ZRN-YGCP-0.6/1KV-3*240+2*120

YGCP-0.6/1KV-4*10+1*6

ZR-YGCP-0.6/1KV-4*10+1*6

ZRN-YGCP-0.6/1KV-4*10+1*6

YGCP-0.6/1KV-4*16+1*10

ZR-YGCP-0.6/1KV-4*16+1*10

ZRN-YGCP-0.6/1KV-4*16+1*10

YGCP-0.6/1KV-4*25+1*16

ZR-YGCP-0.6/1KV-4*25+1*16

ZRN-YGCP-0.6/1KV-4*25+1*16

YGCP-0.6/1KV-4*35+1*16

ZR-YGCP-0.6/1KV-4*35+1*16

ZRN-YGCP-0.6/1KV-4*35+1*16

YGCP-0.6/1KV-4*50+1*25

ZR-YGCP-0.6/1KV-4*50+1*25

ZRN-YGCP-0.6/1KV-4*50+1*25

YGCP-0.6/1KV-4*70+1*35

ZR-YGCP-0.6/1KV-4*70+1*35

ZRN-YGCP-0.6/1KV-4*70+1*35

YGCP-0.6/1KV-4*95+1*50

ZR-YGCP-0.6/1KV-4*95+1*50

ZRN-YGCP-0.6/1KV-4*95+1*50

YGCP-0.6/1KV-4*120+1*70

ZR-YGCP-0.6/1KV-4*120+1*70

ZRN-YGCP-0.6/1KV-4*120+1*70

YGCP-0.6/1KV-4*150+1*70

ZR-YGCP-0.6/1KV-4*150+1*70

ZRN-YGCP-0.6/1KV-4*150+1*70

YGCP-0.6/1KV-4*185+1*95

ZR-YGCP-0.6/1KV-4*185+1*95

ZRN-YGCP-0.6/1KV-4*185+1*95

YGCP-0.6/1KV-4*240+1*120

ZR-YGCP-0.6/1KV-4*240+1*120

ZRN-YGCP-0.6/1KV-4*240+1*120

YGCP-0.6/1KV-5*1.5

ZR-YGCP-0.6/1KV-5*1.5

ZRN-YGCP-0.6/1KV-5*1.5

YGCP-0.6/1KV-5*2.5

ZR-YGCP-0.6/1KV-5*2.5

ZRN-YGCP-0.6/1KV-5*2.5

YGCP-0.6/1KV-5*4

ZR-YGCP-0.6/1KV-5*4

ZRN-YGCP-0.6/1KV-5*4

YGCP-0.6/1KV-5*6

ZR-YGCP-0.6/1KV-5*6

ZRN-YGCP-0.6/1KV-5*6

YGCP-0.6/1KV-5*10

ZR-YGCP-0.6/1KV-5*10

ZRN-YGCP-0.6/1KV-5*10

YGCP-0.6/1KV-5*16

ZR-YGCP-0.6/1KV-5*16

ZRN-YGCP-0.6/1KV-5*16

YGCP-0.6/1KV-5*25

ZR-YGCP-0.6/1KV-5*25

ZRN-YGCP-0.6/1KV-5*25

YGCP-0.6/1KV-5*35

ZR-YGCP-0.6/1KV-5*35

ZRN-YGCP-0.6/1KV-5*35

YGCP-0.6/1KV-5*50

ZR-YGCP-0.6/1KV-5*50

ZRN-YGCP-0.6/1KV-5*50

YGCP-0.6/1KV-5*70

ZR-YGCP-0.6/1KV-5*70

ZRN-YGCP-0.6/1KV-5*70

YGCP-0.6/1KV-5*95

ZR-YGCP-0.6/1KV-5*95

ZRN-YGCP-0.6/1KV-5*95

YGCP-0.6/1KV-5*120

ZR-YGCP-0.6/1KV-5*120

ZRN-YGCP-0.6/1KV-5*120

YGCP-0.6/1KV-5*150

ZR-YGCP-0.6/1KV-5*150

ZRN-YGCP-0.6/1KV-5*150
