用于电力、石油、化工、冶金等行业中控制、监控回路及配电装置中信号传输、控制及测量的连接电器仪表、自动化设备、成套控制柜、机械工程、照明工程等较大斜度的场合。

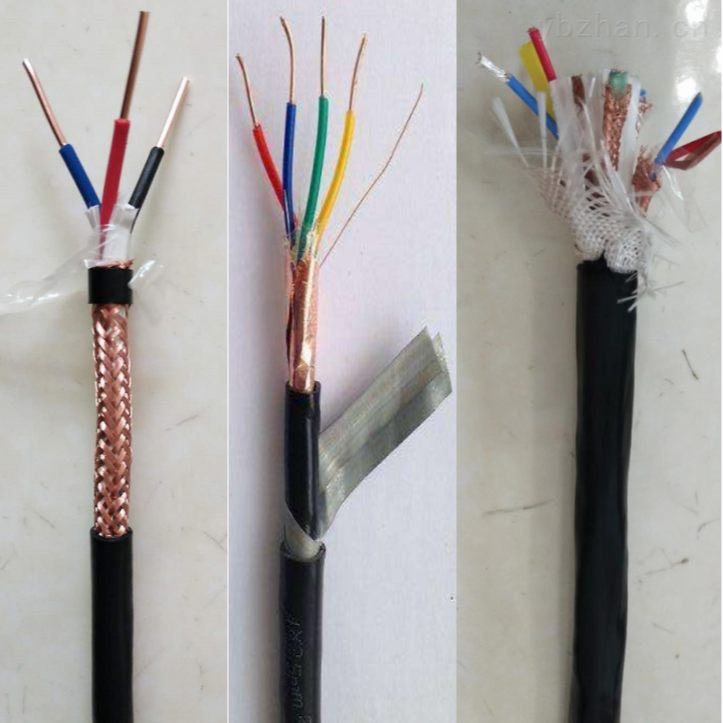

KVVRP-450/750V控制电缆产品结构：
导体：多股裸铜丝绞合(镀锡或镀银铜丝可选)，符合GB/T3956-2008及IEC 60228：2004第5类。
绝缘：聚氯乙烯PVC
芯线：芯线绞合成缆，芯线颜色符合GB/T 5023.1及JB/T 8734.1中的优先色谱选用
彩色或编码芯线，3芯以上带黄绿双色线（可选）
内衬：采用挤包或者绕包非吸湿性材料；挤包的内衬层应不粘连绝缘线芯，绕包的内衬层可采用双层或多层重叠绕包。
屏蔽：采用铜丝编织屏蔽/镀锡铜丝编织屏蔽符合TICW/03-2009之要求
护套：PVC阻燃型聚氯乙烯
护套颜色：黑色，可根据客户需要定制各种颜色
产品特性：
电缆的长期工作温度应不超过70℃
阻燃、阻燃性：符合GB/T 19666-2025的规定
技术参数：
工作电压：450/750V 。
测试电压：成品电缆2500V电压试验5min不击穿 0.6/1KV 成品电缆3500V电压试验5min不击穿。
绝缘电阻：≥ 3000 MΩ . Km （20℃）
Z小弯曲半径：无铠装层的电缆 8 X D（电缆外径）有铠装或屏蔽结构的电缆 15 X D（电缆外径）
工作温度：固定安装-20 ~ +200℃
规格选型：
KVVRP-450/750V-2*0.5 | KVVRP-450/750V-6*6.0 | KVVRP-450/750V-24*0.75 |
KVVRP-450/750V-2*0.75 | KVVRP-450/750V-7*0.5 | KVVRP-450/750V-24*1.0 |
KVVRP-450/750V-2*1.0 | KVVRP-450/750V-7*0.75 | KVVRP-450/750V-24*1.5 |
KVVRP-450/750V-2*1.5 | KVVRP-450/750V-7*1.0 | KVVRP-450/750V-24*2.5 |
KVVRP-450/750V-2*2.5 | KVVRP-450/750V-7*1.5 | KVVRP-450/750V-27*0.5 |
KVVRP-450/750V-2*4.0 | KVVRP-450/750V-7*2.5 | KVVRP-450/750V-27*0.75 |
KVVRP-450/750V-2*6.0 | KVVRP-450/750V-7*4.0 | KVVRP-450/750V-27*1.0 |
KVVRP-450/750V-3*0.5 | KVVRP-450/750V-7*6.0 | KVVRP-450/750V-27*1.5 |
KVVRP-450/750V-3*0.75 | KVVRP-450/750V-8*0.5 | KVVRP-450/750V-27*2.5 |
KVVRP-450/750V-3*1.0 | KVVRP-450/750V-8*0.75 | KVVRP-450/750V-30*0.5 |
KVVRP-450/750V-3*1.5 | KVVRP-450/750V-8*1.0 | KVVRP-450/750V-30*0.75 |
KVVRP-450/750V-3*2.5 | KVVRP-450/750V-8*1.5 | KVVRP-450/750V-30*1.0 |
KVVRP-450/750V-3*4.0 | KVVRP-450/750V-8*2.5 | KVVRP-450/750V-30*1.5 |
KVVRP-450/750V-3*6.0 | KVVRP-450/750V-10*0.5 | KVVRP-450/750V-30*2.5 |
KVVRP-450/750V-4*0.5 | KVVRP-450/750V-10*0.75 | KVVRP-450/750V-32*0.5 |
KVVRP-450/750V-4*0.75 | KVVRP-450/750V-10*1.0 | KVVRP-450/750V-32*0.75 |
KVVRP-450/750V-4*1.0 | KVVRP-450/750V-10*1.5 | KVVRP-450/750V-32*1.0 |
KVVRP-450/750V-4*1.5 | KVVRP-450/750V-10*2.5 | KVVRP-450/750V-32*1.5 |
KVVRP-450/750V-4*2.5 | KVVRP-450/750V-12*0.5 | KVVRP-450/750V-32*2.5 |
KVVRP-450/750V-4*4.0 | KVVRP-450/750V-12*0.75 | KVVRP-450/750V-36*0.5 |
KVVRP-450/750V-4*6.0 | KVVRP-450/750V-12*1.0 | KVVRP-450/750V-36*0.75 |
KVVRP-450/750V-5*0.5 | KVVRP-450/750V-12*1.5 | KVVRP-450/750V-36*1.0 |
KVVRP-450/750V-5*0.75 | KVVRP-450/750V-12*2.5 | KVVRP-450/750V-36*1.5 |
KVVRP-450/750V-5*1.0 | KVVRP-450/750V-14*0.5 | KVVRP-450/750V-36*2.5 |
KVVRP-450/750V-5*1.5 | KVVRP-450/750V-14*0.75 | KVVRP-450/750V-48*0.5 |
KVVRP-450/750V-5*2.5 | KVVRP-450/750V-14*1.0 | KVVRP-450/750V-48*0.75 |
KVVRP-450/750V-5*4.0 | KVVRP-450/750V-14*1.5 | KVVRP-450/750V-48*1.0 |
KVVRP-450/750V-5*6.0 | KVVRP-450/750V-14*2.5 | KVVRP-450/750V-48*1.5 |
KVVRP-450/750V-6*0.5 | KVVRP-450/750V-19*0.5 | KVVRP-450/750V-48*2.5 |
KVVRP-450/750V-6*0.75 | KVVRP-450/750V-19*0.75 | KVVRP-450/750V-52*0.5 |
KVVRP-450/750V-6*1.0 | KVVRP-450/750V-19*1.0 | KVVRP-450/750V-52*0.75 |
KVVRP-450/750V-6*1.5 | KVVRP-450/750V-19*1.5 | KVVRP-450/750V-52*1.0 |
KVVRP-450/750V-6*2.5 | KVVRP-450/750V-19*2.5 | KVVRP-450/750V-52*1.5 |
KVVRP-450/750V-6*4.0 | KVVRP-450/750V-24*0.5 | KVVRP-450/750V-52*2.5 |
